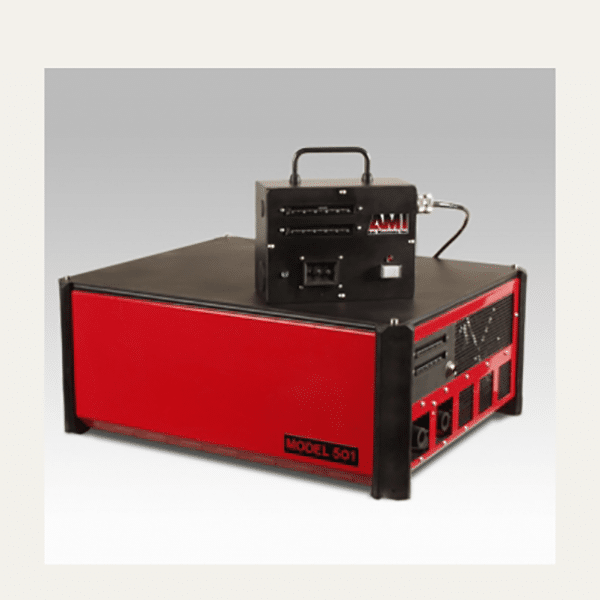

Arc Machines model 501 pipe welding hot wire power source

Arc Machines model 501 pipe welding hot wire power source


Version:1.0 StartHTML:000000223 EndHTML:000008302 StartFragment:000005049 EndFragment:000008228 StartSelection:000005049 EndSelection:000008218 SourceURL: 501 | Pipe Welding | Orbital Welding | Arc Machines, Inc.

The Model 501 was designed to supply resistance heated filler wire near melting temperatures to weld pool, thereby increasing the energy available to melt the base metal.

High deposition rate = High productivity

The Model 501 is suitable for welding high-quality stainless steel tanks and vessels that are rotated during welding. The addition of hot wire can optimize the corrosion resistance and/or mechanical properties of the weldment and have a beneficial effect on the material performance in service. The hot wire GTAW process produces a very clean weld with a very low incidence of porosity and increases filler deposition rates similar to GMAW.


  • Constant Voltage (CV) True RMS mode-of-operation
  • Calibrated Precision Closed Loop Servo Output Control
  • Voltage Feedback Sensing at the wire feed tip or internal to the Power Supply
  • True RMS instrumentation Outputs (Amps and Volts)
  • Optional Manual Remote Programming Pendant
  • Control input for connection to an external controller

The Model 501 implements advanced technology with significant competitive advantages. To minimize magnetic interference , the unit uses AC current to preheat the wire. This current is far more precise than competitive machines, being very close to a true sine wave.

The Model 501 Hot-Wire Power Supply can be used:

  • as a stand-alone unit with its own Operator Pendant
  • with the AMI Model 415 Power Supply/Controller
  • or by and external weld process controller programmer
