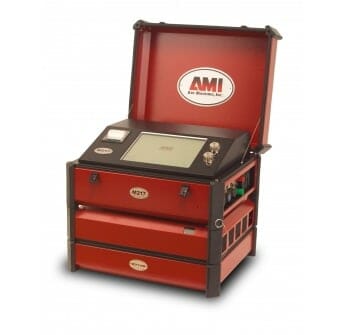

Arc Machines (An Esab Brand) M217 Orbital power supply

Arc Machines Orbital power supply.


Arc Machines (An Esab  Brand) M217 Orbital power supply, capturing the heritage and credibility of the Arc Machines 207


The Model 217 WDR is a 100/150A programmable GTAW power supply. It is designed to work with all AMI’s orbital fusion weld heads and is capable of welding tube and thin wall pipe.

The internal memory of the machine stores up to 1000 different welding schedules for quick access. High-integrity, sanitary welds are easily reproduced at the touch of a button. The welds produced by the Model 217 WDR meet or exceed the specifications required by diverse industries such as: semiconductor, food, dairy, beverage, pharmaceutical, aerospace, renewable energy and nuclear.

WDR (Weld Data Recording): recording and saving of weld data; exporting to a storage device in comma-separated value (.csv) file format; saving project weld data records as a single file.
12” color touch-screen display
Computer controlled internal memory for 1000+ weld schedules and up to 99 levels per schedule
Manual or automated weld procedure generation
Weld schedules: pulsed, step, no-pulsed, S3 and pulsed S3
H.F. arc starting
ID and OD gas pressure control and on-screen pressure monitoring
Fault detection: gas, coolant
Internal printer for print of schedule setting and quantity of completed welds
Digital weld head control to allow connection to weld heads from other manufacturers.

Optional water cooler – shown in picture. Please call for price

Manufacturer’s website

Arc machines weld schedule development quick guide


Input Power 100 – 240 VAC service
Single-phase 50/60 Hz
Weld Current 5 – 150 A, 100% Duty Cycle with 110V/20A service;
70% Duty Cycle with 110V/15A service;
100% Duty Cycle with 220V/30A service
Current Pulse Rate 0.05 – 50 PPS
Overrides Programmable from 0% – 100%
Memory Capacity 1000+ weld schedules, 99 levels per schedule maximum
I/O Device 2 USB ports (2.0); 1 Ethernet port
WDR (Weld Data Recording) Standard
Water Cooler Optional
Dimensions Height: 11″ (279 mm)
Width: 22.75″ (578 mm)
Length: 18.75″ (476 mm)
Weight 66 lbs. (30 kg)
