Arc Machines Model 9 Double Clamp orbital weld heads

Arc Machines Orbital weld head model 9

Description

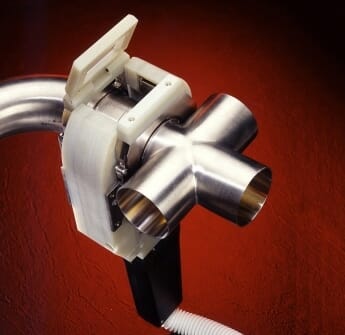

The Model 9 series of orbital weld heads are designed for fusion (TIG) welding of tube, pipe, fittings or other cylindrical components. Available in ten sizes and three versions, they can be configured over 60 different ways and can accommodate diameters from 3/32” (2,3 mm) to 7.5” (190,5 mm) OD, and wall thicknesses from 0.01” (0,25 mm) to 0.16” (4 mm).

Each weld head fits a wide range of tube sizes via easily replaced, size-specific clamps. The standard Model 9 incorporates a two-sided clamping mechanism to hold components being welded in line and concentric – eliminating the need for tack welding. Several of these heads incorporate a flip-up viewing window, for easy verification of fit-up. Most Model 9 weld heads are plumbed for water cooling of both the cables and internal weld head components – allowing increased duty-cycles.

Compatible with all AMI Power Supplies. Prices will vary according to application. Please call to discuss.



Model dimensons:



Model No. Tube/Pipe
OD Range
                             Dimensions
A B C D E F
9-250 0.093″-0.250″
2,3-6,3mm
10.00″
254mm
0.83″
21mm
0.66″
16,7mm
1.31″
33,3mm
0.25″
6,3mm
0.48″
12,2mm
9-500/C 0.093″-0.500″
2,3-12,7mm
9.60″
244mm
0.96″
24,4mm
1.29″
32,7mm
2.58″
65,5mm
0.25″
6,3mm
0.48″
12,2mm
9-750 0.125″-0.750″
3,2-19mm
11.30″
287mm
1.19″
30,2mm
1.38″
35mm
2.75″
69,8mm
0.70″
17,8mm
1.40″
35,5mm
9-1500 0.250″-1.500″
6,3-38,1mm
13.00″
330mm
1.88″
47,7mm
2.00″
50,8mm
4.00″
101,6mm
1.41″
35,8mm
2.81″
71,4mm
9E-1500 0.250″-1.315″
6,3-33,4mm
13.00″
330mm
1.88″
47,7mm
2.00″
50,8mm
4.00″
101,6mm
0.37″
9,4mm
2.85″
72,4mm
9-2500 0.750″-2.500″
19-63,5mm
15.75″
400mm
2.62″
66,5mm
2.88″
73,1mm
5.75″
146mm
1.72″
43,7mm
3.44″
87,4mm
9E-2500 0.750″-2.735″
19-69,4mm
15.75″
400mm
2.62″
66,5mm
2.88″
73,1mm
5.75″
146mm
0.37″
9,4mm
3.53″
89,6mm
9-3500 1.000″-3.500″
25,4-88,9mm
16.75″
425mm
3.12″
79,2mm
3.63″
92,2mm
7.25″
184,1mm
1.72″
43,7mm
3.44″
87,4mm
9E-3500 1.000″-3.250″
25,4-82,5mm
16.75″
425mm
3.12″
79,2mm
3.63″
92,2mm
7.25″
184,1mm
0.37″
9,4mm
3.53″
89,6mm
9-4500 1.500″-4.500″
38,1-114,3mm
19.00″
483mm
4.25″
107,9mm
4.50″
114,3mm
9.00″
228,6mm
2.00″
50,8mm
4.00″
101,6mm
9E-4500 1.500″-4.000″
38,1-101,6mm
19.00″
483mm
4.25″
107,9mm
4.50″
114,3mm
9.00″
228,6mm
0.37″
9,4mm
2.81″
71,4mm
9ER-4500 1.500″-4.500″
38,1-114,3mm
19.00″
483mm
4.25″
107,9mm
4.50″
114,3mm
9.00″
228,6mm
0.37″
9,4mm
2.81″
71,4mm
9-7500 2.875″-7.500″
73-190,5mm
22.00″
559mm
5.68″
144,3mm
6.12″
155,4mm
12.25″
311,1mm
2.16″
54,8mm
4.32″
109,7mm
9E-7500 2.875″-6.626″
73-168,3mm
22.00″
559mm
5.68″
144,3mm
6.12″
155,4mm
12.25″
311,1mm
0.53″
13,4mm
3.97″
100,8mm



Model drawings for use with dimensions table:
